Countertop Grossing Station

    Constructed from high-quality stainless steel, the Tissue-Tek Accu-Edge Countertop Grossing Station comes equipped with a vacuum breaker-protected water supply.Model #0110 is available with

    Enhanced grossing capabilities for limited spaces

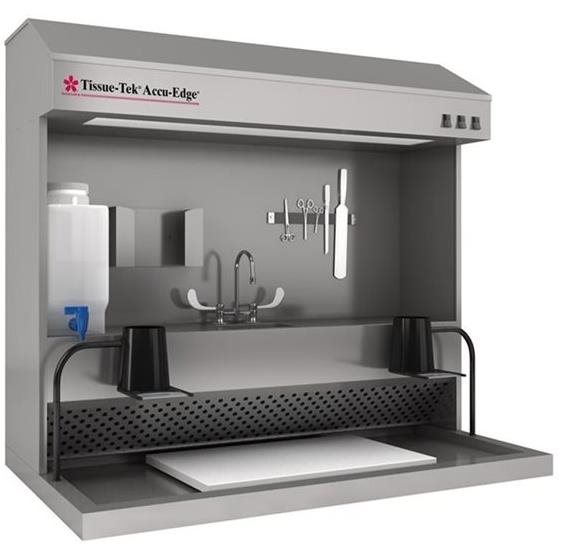

    As part of the full line of superior grossing stations from Sakura Finetek, the Tissue-Tek® Accu-Edge® Countertop Grossing Station offers your lab enhanced grossing capabilities, even in limited space.

    Constructed from high-quality stainless steel, the Tissue-Tek Accu-Edge Countertop Grossing Station comes equipped with a vacuum breaker-protected water supply.

    Model #0110 is available with two duct options: ducting either to an outside ventilation source or by using the self-contained ventilation system with replaceable filters. Other standard features of this countertop grossing station include an integral sink with mixing faucet, easily accessible control panel, ample lighting, formalin container with spigot, C-fold paper towel holder, magnetic instrument holder, and a polyethylene dissecting board. Model #0110 can also be configured as a stand-alone unit.

    Options include the base leg assembly (Model #0120) or the base leg assembly with cabinet (Model #0121), and the PAXcamHD Gross Imaging System. Other optional accessories are available.

    Grossing stations are available in widths of 48 or 60 inches.

    Features

         Benefits
    304 stainless steel
    • Sturdy construction to perform routing grossing procedures
    Exhaust duct connection
    • Connects to buildings ventilation system to remove fumes away from the work area
    Integral sink with mixing faucet
    • Small sink provides water to the grossing station
    LED light fixtures
    • Provides ample lighting over the work area
    GFCI duplex receptacle with waterproof cover
    • Allows for external devices to be plugged into the grossing stations and used
    Magnetic instrument holder
    • Holds common tools on the front of the grossing station within arm's reach of the work area
    Customizable
    • Built to laboratory's specifications

    Product name Tissue-Tek® Accu-Edge® Countertop Grossing Station
    Product code 0110
    Application Grossing procedures
    Dimensions 48 or 60 (W) x 29 (D) x 47 (H) inches
    122 or 153 (W) x 74 (D) x 120 (H) cm
    Weight 48 inch station, 275 lbs (171 kg)
    60 inch station, 325 lbs (193 kg)
    Regulatory status IVD, FDA Class I

    Product code

    Product name and quantity
    0148 Tissue-Tek® Accu-Edge® Grossing Station, CPU Bracket
    0150 Tissue-Tek® Accu-Edge® Grossing Station, Camera Mount Facility
    0152 Tissue-Tek® Accu-Edge® Grossing Station, Cassette Holders; 3/case
    0156 Tissue-Tek® Accu-Edge® Grossing Station, Disposal, 1 HP
    0164 Tissue-Tek® Accu-Edge® Grossing Station, Eyewash Assembly
    0169 Tissue-Tek® Accu-Edge® Grossing Station, Filter Activated Carbon & Potassium Permanganate
    0170 Tissue-Tek® Accu-Edge® Grossing Station, Flammable Storage Cabinet
    0172 Tissue-Tek® Accu-Edge® Grossing Station, Formalin Dispense/Collection
    0175 Tissue-Tek® Accu-Edge® Grossing Station, Form Holders; 2/case
    0176 Tissue-Tek® Accu-Edge® Grossing Station, Full Perimeter Rinse
    0177 Tissue-Tek® Accu-Edge® Grossing Station, Glove Box Holder
    0178 Tissue-Tek® Accu-Edge® Grossing Station, Halogen Light, Flex Arm
    0186 Tissue-Tek® Accu-Edge® Grossing Station, Magnifier Light, Deck Mount
    0188 Tissue-Tek® Accu-Edge® Grossing Station, Microphone on Flex Arm
    0190 Tissue-Tek® Accu-Edge® Grossing Station, Monitor & Keyboard Stand
    0201 Tissue-Tek® Accu-Edge® Grossing Station, Ruler, Removable, Stainless Steel
    0203 Tissue-Tek® Accu-Edge® Grossing Station, Scale, Economy
    0204 Tissue-Tek® Accu-Edge® Grossing Station, Scale, Digital
    0206 Tissue-Tek® Accu-Edge® Grossing Station, Shelving/Cabinets, Adjustable
    0207 Tissue-Tek® Accu-Edge® Grossing Station, Side Splashes
    0208 Tissue-Tek® Accu-Edge® Grossing Station, Splash Shield on Flex Arm
    0215 Tissue-Tek® Accu-Edge® Grossing Station, Trash Container, Ventilated
    0217 Tissue-Tek® Accu-Edge® Grossing Station, Utility Drawer
    0222 Tissue-Tek® Accu-Edge® Grossing Station, Ventilation, Self-Contained
    0224 Tissue-Tek® Accu-Edge® Grossing Station, Video Camera Arm
    0228 Tissue-Tek® Accu-Edge® Grossing Station, Dictation, Voice Activated
    0229 Tissue-Tek® Accu-Edge® Grossing Station, Work Area Cover, Plexiglas
    0230 Tissue-Tek® Accu-Edge® Grossing Station, Writing Platform, Pull-Out
    PI-HDG PAXcamHD Gross Imaging Camera plus Software
    PI-HDG-B PAXcam Benchtop stand
    PI-HDG-BL PAXcam Back Light
    PI-HDG-RL PAXcam Ringlight
    PI-HDG-RBL PAXcam Combined Ringlight with Back Light
